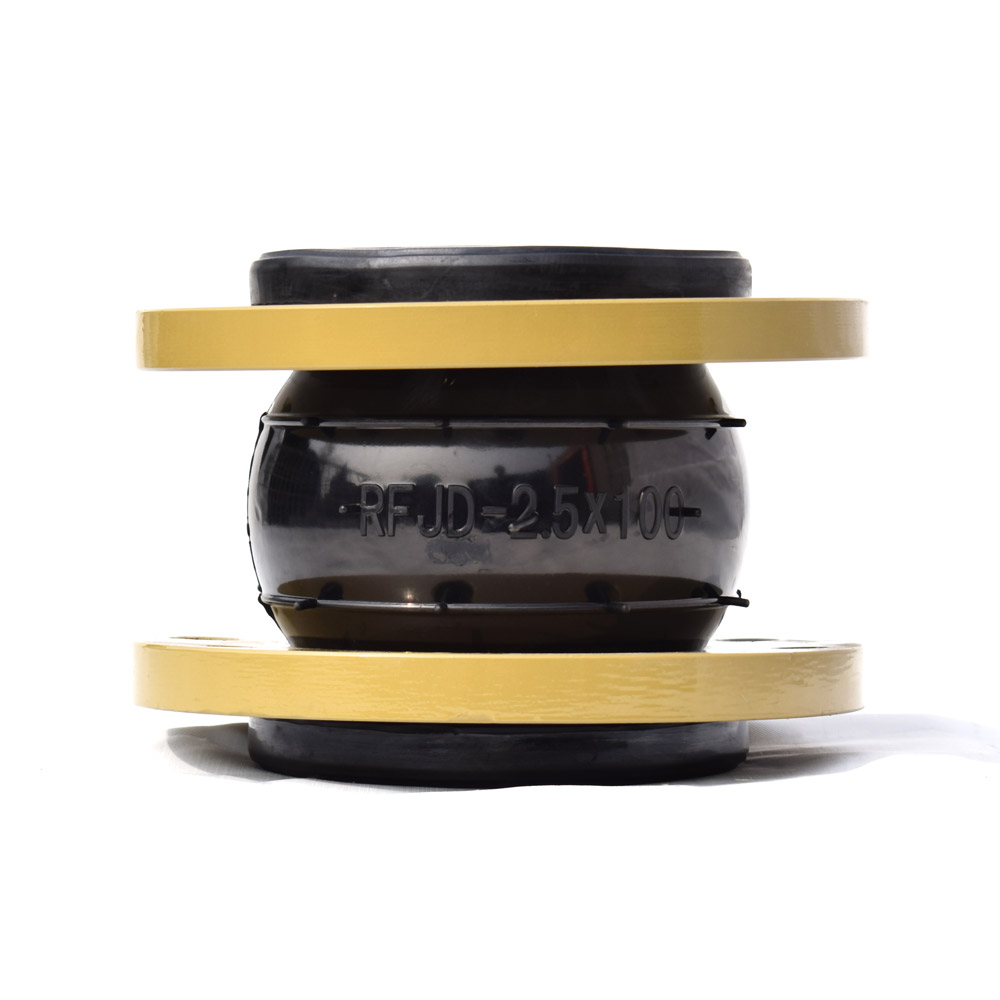

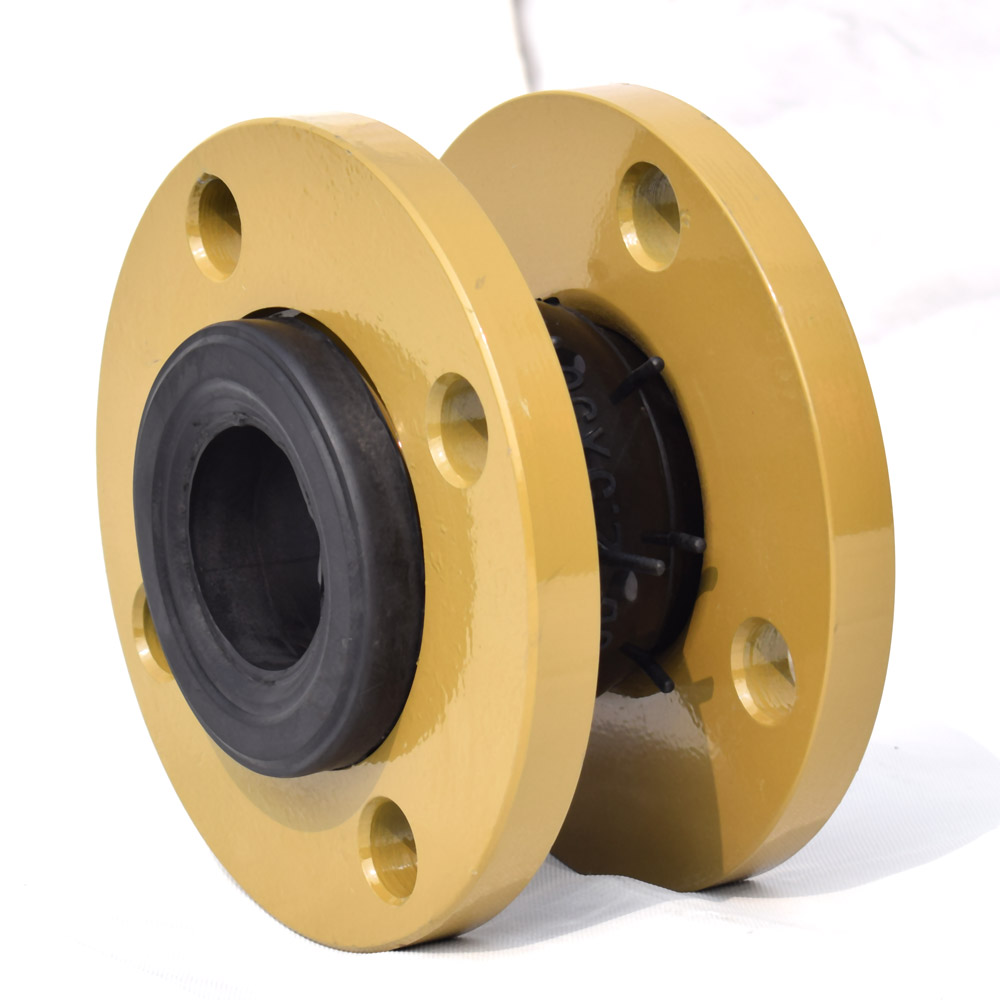

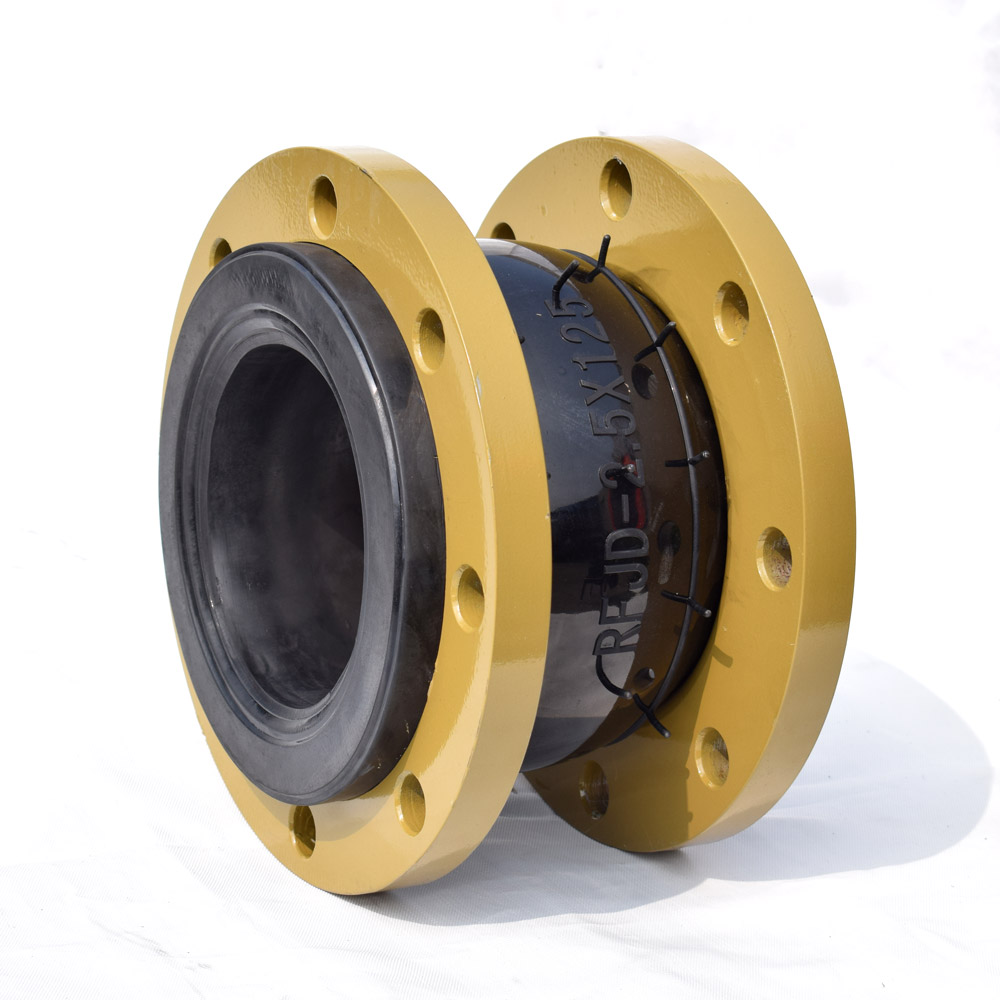

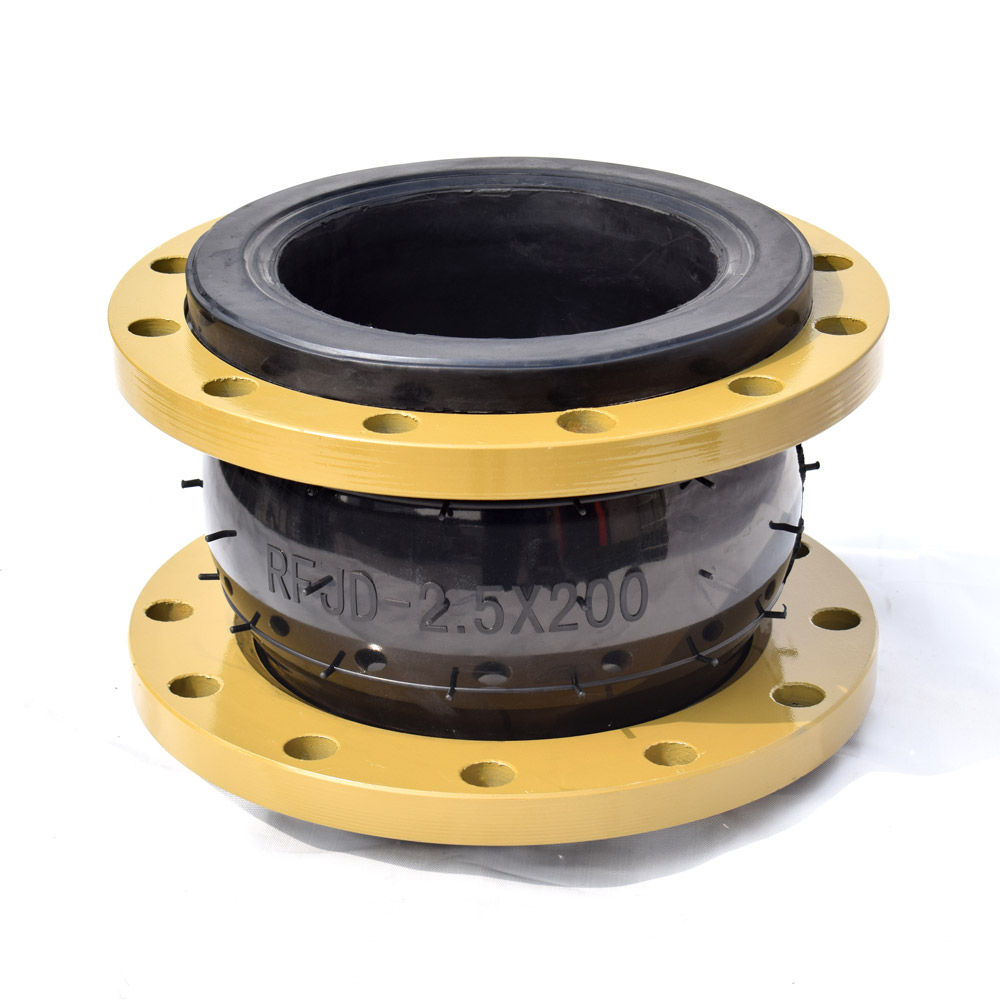

Single Sphere
EPDM rubber flexible joints with carbon steel flange
- Rubber material: EPDM
- Working pressure:1.6Mpa
- Working temperature:-20℃--120℃
- Flange standard:DIN 2501
- Product description: EPDM rubber flexible joints
Product Description

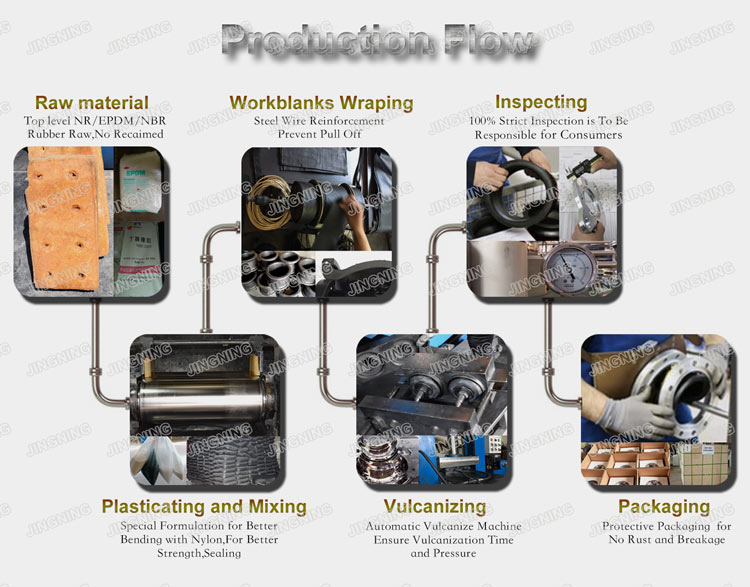

For pipe construction, you will need expansion joints – to absorb thermal expansion, to reduce vibration and noise.Our ‘JINGNING’ expansion joints have reliably performed these tasks since 2004.All fo JINGNING rubber expansion joints safety ratings exceeding product specifications in such areas as pressure and movement.
Part of technical data
|
Main data of rubber expansion joint
|
||||||
|
Nominal diameter(DN)
|
Length
|
Axial displacement(mm)
|
Horizontal displacement
|
Deflexion angle
|
||
|
mm
|
inch
|
mm
|
Extension
|
Compression
|
mm
|
(a1+a2)°
|
|
32
|
1 1/4
|
95
|
6
|
9
|
9
|
15°
|
|
40
|
1 1/2
|
95
|
6
|
10
|
9
|
15°
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
|
65
|
2 1/2
|
115
|
7
|
13
|
11
|
15°
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
NOTES:Dimensions are expressed in mm, and subjected to manufacturing tolerances. Data can be altered without notice by our Design Department for the product benefit.* The stated movements are solely valid with the joint subject to a single movement direction. Values are proportionally reduced along with the movement combination.* Given tolerance installed and movements allowed are valid for rubber bellows. For bellows with PTFE sleeve, values must bereduced by 1/2.* Increasing temperatures reduce the permissible movements capacity and number of cycles. Dimensions are expressed in mm
About rubber materials
Flexible rubber joints can be manufactured from a range of elastomer materials including:
»Chloro Butyl »EPDM
»Hypalon »Natural
»Neoprene »Nitrile (Buna-N)
The joints may consist entirely of the one type of rubber or a combination with one type of rubber as the inner ply and a different rubber as the outer cover.
FAQ
1. What's material of rubber expansion joints ?
We have EPDM.NR,NBR and so on .You can choose it according to the work environment and media.
2. What's the standard of flanges ?
We have DIN,ANSI,JS,BS,GB standard flanges.You can chose it according to your connected flanges.
3. How long is rubber expansion joints' warranty?
2 years. From the day the customer receiving the goods, we grant a free replacement if the products have any problems during the guarantee period.
4. Can I only buy rubber joints without flanges ?
Yes,and rubber joints without flanges will be cheaper.
5.Can you make the product as per client's requirement? ?
Yes, ODM and OEM are both supported.
6. Can I get a sample ?
Yes, please contact us for samples.
