Reduced Type

  • Reduced rubber expansion joints

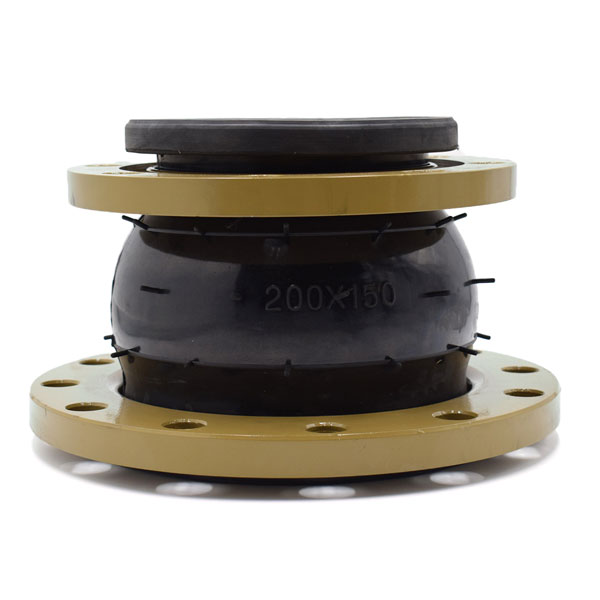

Reduced rubber expansion joints

Reduced rubber expansion joints

  • Size: DN50--DN400
  • Rubber Material: EPDM,NBR,NR
  • Flange Standard: ANSI,DIN,JIS,BS
  • OEM&ODM
  • Product description: Reduced rubber expansion joints
  • INQUIRY



Single sphere flexible rubber expansion joint


.jpg


Materials of Each Components


1- Vulcanised

Rubber Bellow:

1.1 Rubber core (inner)
1.2 Nylon tire cord
1.3 Rubber cover (outer)
1.4 Steel Wire

Rubber options: EPDM, NBR, Hypalon, Neoprene,

Viton, Butyl Rubber,Natural Rubber, PTFE/EPDM

2- Loose Flanges:
Flange standard:DIN ,BS ,JIS ,ANSI,AS ,UNI,etc.
Flange Options: Stainless Steel AISI 304, AISI 316, etc.


Parameter Table

Main connecting dimension of rubber expansion joint

Nominal diameter(DN)

Length

Axial displacement

Horizontal displacement

Deflexion angle

mm

inch

mm

Extension(mm)

Compression(mm)

mm

(a1+a2)°

32

1 1/4

95

6

9

9

15°

40

1 1/2

95

6

10

9

15°

50

2

105

7

10

10

15°

65

2 1/2

115

7

13

11

15°

80

3

135

8

15

12

15°

100

4

150

10

19

13

15°

125

5

165

12

19

13

15°

150

6

180

12

20

14

15°

200

8

210

16

25

22

15°

250

10

230

16

25

22

15°

300

12

245

16

25

22

15°

350

14

255

16

25

22

15°

400

16

255

16

25

22

15°

450

18

255

16

25

22

15°

500

20

255

16

25

22

15°

600

24

260

16

25

22

15°

700

28

260

16

25

22

15°

800

32

260

16

25

22

15°

900

36

260

16

25

22

15°

1000

40

260

18

26

24

15°

1200

48

260

18

26

24

15°

1400

56

350

20

28

26

15°

1600

64

350

25

35

30

10°

1800

72

350

25

35

30

10°

2000

80

420

25

35

30

10°

2200

88

420

25

35

30

10°

2400

96

420

25

35

30

10°

2600

104

450

25

35

30

10°

2800

112

450

25

35

30

10°

3000

120

500

25

35

30

10°


Why chose us?

For pipe construction, you will need compensators – to absorb thermal expansion, to reduce vibration and noise. Our ‘Jingning’ rubber expansion joints have reliably performed these tasks since 1997.Due to premium quality and good service our rubber expansion joints have become the industry standard in China.


Attributes of Our design

ourdesign1

Advantage of our rubber expansion joint





Packaging & Shipping

DSC_0402DSC_0419DSC_0433
